首頁歐美晶振微晶晶振MCSO6EU-V-E-32.768kHz-E/D-T3|Micro超低功耗晶振

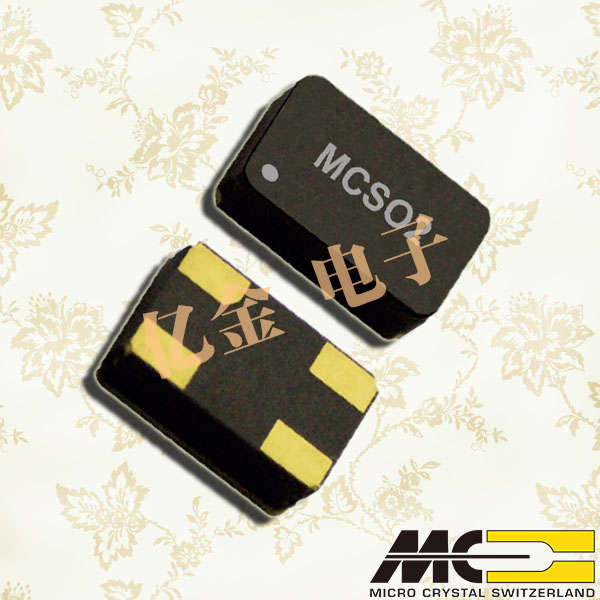

MCSO6EU-V-E-32.768kHz-E/D-T3|Micro超低功耗晶振

頻率：32.768KHz
尺寸：3.5×2.2mm
應　用： Micro晶振,MCSO6EU石英水晶振蕩子,有源晶振,MCSO6EU-V-E-32.768kHz-E/D-T3晶振,3522mm晶振,四腳貼片晶振,石英晶體振蕩器,SMD晶振,頻率32.768KHz,電壓3.3V,工作溫度-55~150°C,頻率容差150ppm,耐高溫晶振,高抗沖擊晶振...

MCSO6EU-V-E-32.768kHz-E/D-T3|Micro超低功耗晶振,Micro晶振,MCSO6EU石英水晶振蕩子,有源晶振,MCSO6EU-V-E-32.768kHz-E/D-T3晶振,3522mm晶振,四腳貼片晶振,石英晶體振蕩器,SMD晶振,頻率32.768KHz,電壓3.3V,工作溫度-55~150°C,頻率容差150ppm,耐高溫晶振,高抗沖擊晶振,高抗振動晶振,航空電子晶振,鉆井設備晶振,地熱設備晶振,遙測應用晶振.
MCSO6EU-V-E-32.768kHz-E/D-T3|Micro超低功耗晶振特點：
•卓越的密封與金-錫預制
•高穩定性，低老化，密封保證
•頻率穩定保證1000小時在TMAX
•非?？斓膯?br /> •在基本模式下運行
•高抗沖擊和抗振動
•100%不含鉛，符合RoHS標準

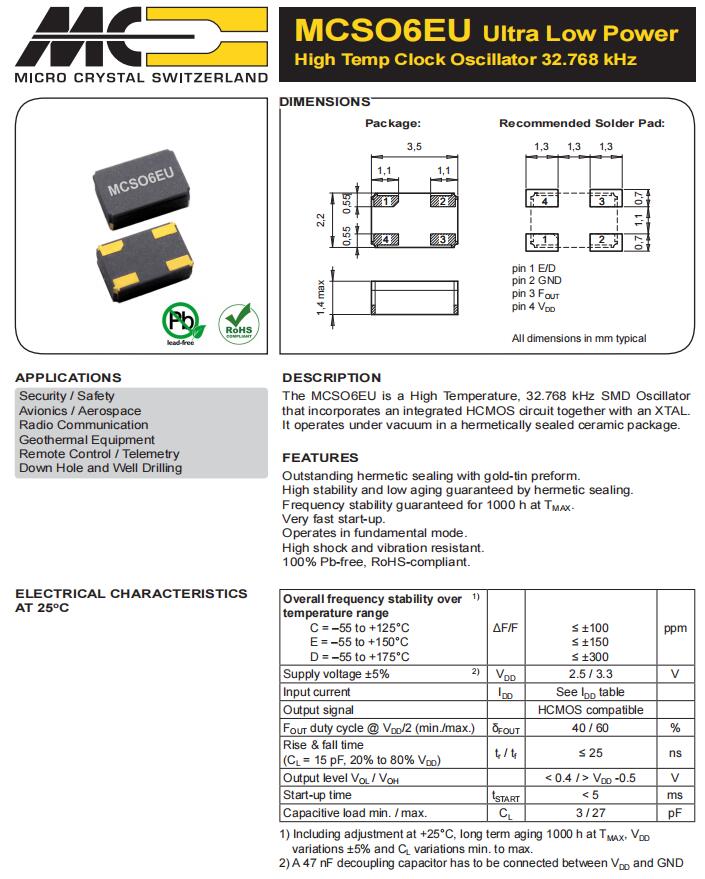

MCSO6EU-V-E-32.768kHz-E/D-T3|Micro超低功耗晶振規格表

Standard Frequency	FL	32.768	KHz
Supply voltage ±5%	VDD	3.3	V
Frequency tolerance	ΔF/F	±150	ppm
Input Current	IDD	< 20 µA	µA
Output signal		HCMOS compatible
FOUT duty cycle @ VDD/2 (min./max.)	δFOUT	40 / 60	%
Rise & fall time,≤ 20 MHz For F = 32.768 kHz, tr / tf ≤ 150 ns(CL = 15 pF, 20% to 80% VDD)	tr / tf	≤ 25	ns
Output level VOL / VOH		< 0.4 / > VDD -0.5	V
Start-up time	tSTART	< 5	ms
Capacitive load min. / max	CL	3 / 27	pF
Storage temperature range	T_stg	−65~+125	°C
Operating temperature range	T_use	−55~+150	°C
Shock resistance		1000 g, 0.3 ms, ½ sine
Vibration resistance		80 g / 10–2000 Hz
Lid		Ceramic lid
Terminations (Option )		SnAgCu solder dipped pads (T3)

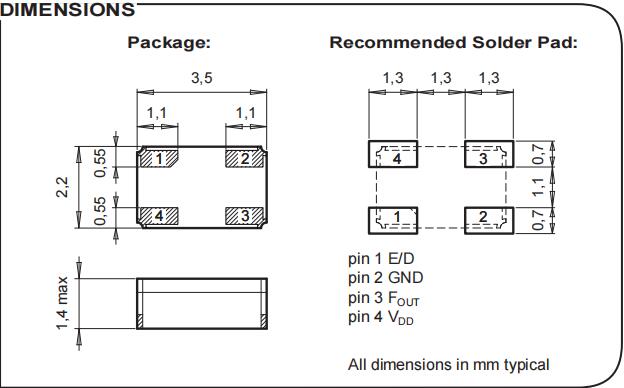

MCSO6EU-V-E-32.768kHz-E/D-T3|Micro超低功耗晶振尺寸圖
